HFFS Application
Soap Flow Wrapping Machine for Bar Soap Pillow Packs
Bar soap is a regular solid product well suited to horizontal flow wrapping when dimensions, surface condition and product spacing are controlled. A suitable system must prevent scuffing, keep printed film aligned and create consistent fin and end seals across the required size range.

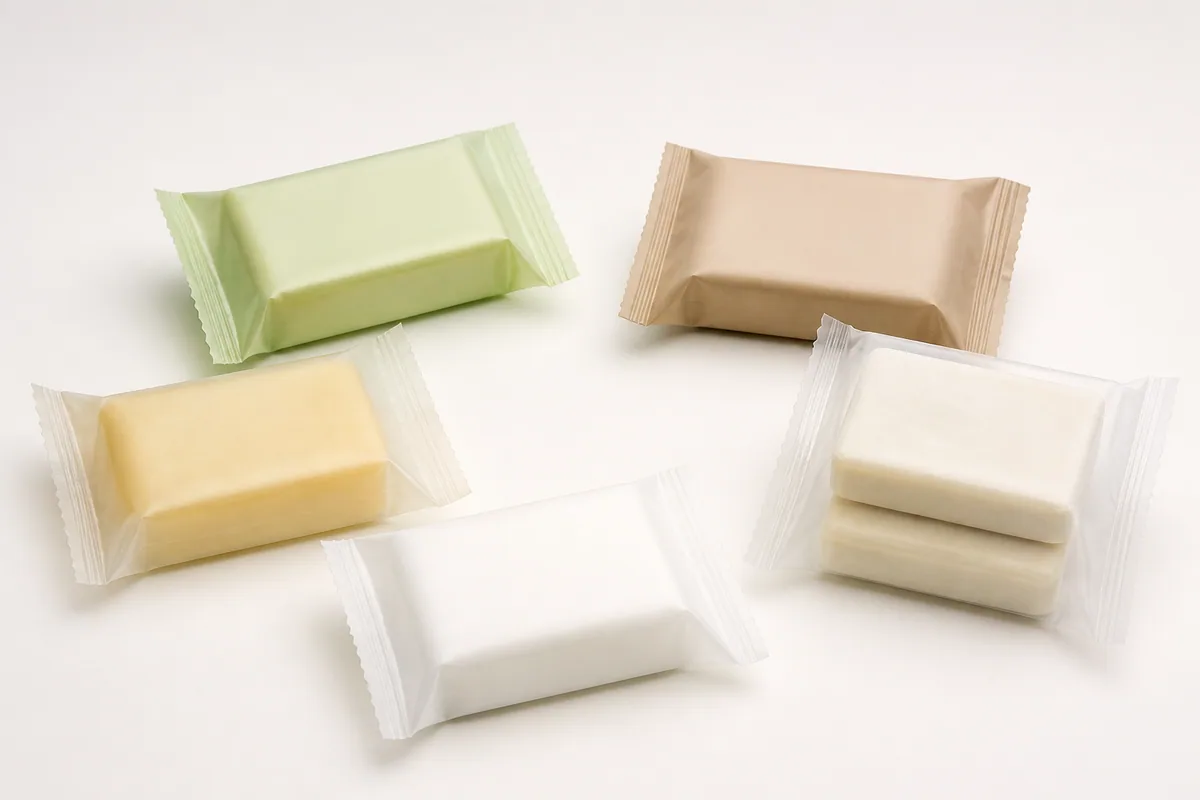

Illustrative packaging example
Published HYS Configuration Facts
- HFFS models are published at 20-250 packs/min
- Published finished bag widths extend from 25-110 to 50-200 mm by model
- Published suitable film thickness: 0.03-0.06 mm
- Automatic feeding and gas flushing are project-specific options
Final model, options, accuracy and output are confirmed from product and package samples.
Custom functions: Nitrogen flushing, dust extraction, metal detection and checkweighing require a customized machine or line configuration.
Product Handling Requirements
- Provide soap length, width, height, weight and acceptable surface-contact method.
- Confirm whether bars arrive loose, from a cutter, in trays or on an upstream conveyor.
- Guides and lugs should maintain orientation without marking soft or freshly produced bars.
- For multipacks, define count, grouping method and final bundle dimensions.
Packaging Film and Presentation
- Confirm printed or plain film, thickness, friction and heat-seal range.
- Eye-mark control is required when artwork must remain centered on every bar.
- Bag dimensions should provide neat corners without excessive looseness or product compression.
- Date or batch coding should be positioned away from critical seal areas.
Changeover and Verification
- List every soap size and expected production rate before selecting HFS-260, HFS-350 or HFS-450.
- Verify stable feeding, seal appearance, cut position and reject rate with actual samples.
- Record forming-box, guide and recipe requirements for repeatable changeover.
Frequently Asked Questions
Yes when both products fit the selected machine range and suitable forming parts are available. Size difference and desired pack appearance determine the changeover work.
No. This page concerns solid bar soap. Pumpable liquid soap requires a liquid filling and compatible pouch or container system.
