HYS Chain Hopper Bagger (Bucket-type Bagger)
The HYS Chain Hopper Bagger (Bucket-type packaging machine) features a flexible chain conveyor loop with integrated feeding buckets. This layout allows operators to manually or semi-automatically place mixed hardware components, multi-piece kits, fragile bakery goods, or toys directly into the bucket line. The conveyor then drops the items into the forming tube, creating a secure, sealed pillow pouch.
Live Video Demonstration
Watch the HYS Chain Hopper bagger system in operation. This demonstration highlights the automatic material loading, precise sealing, and synchronized high-speed cutting.
HYS Chain Bucket Conveyor Packaging Machine Running Video
Video ID: BDEjLuxcwe4 | Click to play YouTube demonstration video

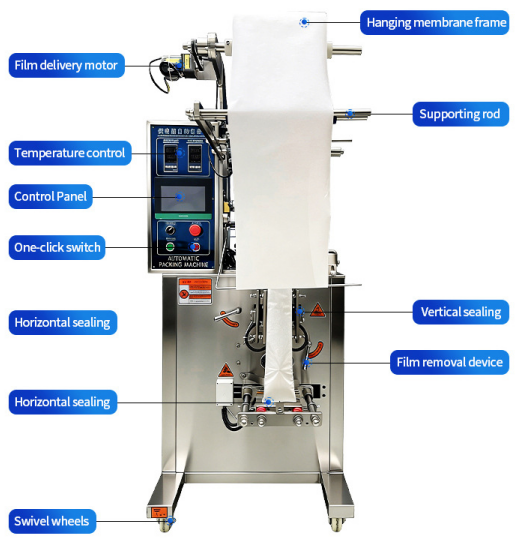

Product Structure Analysis
Clear & Bright Layout
The equipment is small in size, low in energy consumption, easy to operate, and easy to clean. With its modular conveyor layout, parts like the chain conveyor loop, forming tube, vertical sealing jaw, and horizontal sealing jaw are designed for quick cleanup and routine maintenance.
Key Engineering Features
PLC Intelligent Control
High-speed program execution stores parameters for up to 10 product styles, permitting quick product transitions.
Synchronized Conveyor Feed
High-precision encoders sync the chain bucket loop with the film feeding and sealing jaws, ensuring items drop safely inside the bag.
Independent Sealing Control
Digital PID temperature controllers manage vertical and horizontal heat elements separately to match different film types.
Safety Interlocks
Automatic warning alarms and safety shield sensors immediately halt machine operation during abnormal situations.
Technical Specifications Matrix
| Specification Parameter | Value / Limits (320 Model) |
|---|---|
| Product Model | 320model-Bucket-type packaging machine |
| Power Supply | 220V / 50-60Hz |
| Power Rating | 3.0 KW |
| Packaging Speed | ≤ 25 - 55 packages per minute |
| Bag Size Limits | L: 20 - 150 mm W: 20 - 100 mm |
| Max Film Roll Outer Dia. | ≤ φ450 mm |
| Wire Rope Drum Dia. | ≤ φ200 mm |
| Label Roll Dia. | ≤ φ300 mm |
| Measurement Range | Customizable |
| Dimensions of the Shape | 1700 * 1020 * 730 mm (L * W * H) |
| Machine Net Weight | 400 kg |
Material Suitability & Bag Styles
The chain bucket conveyor is ideal for manual loading, allowing operators to drop various items into single bags.
Suitable Items
- Multi-piece hardware kits (screws, wall plugs)
- Plastic assemblies, toys, crafts
- Daily dry items (socks, towels, glove packs)
- Fragile bakery products, small bread rolls
Supported Bag Styles
Standard Back-Seal (Pillow) bag, Link-Bag strip, and optionally Gusseted side folds or hole-punch styles.
Key Component Details

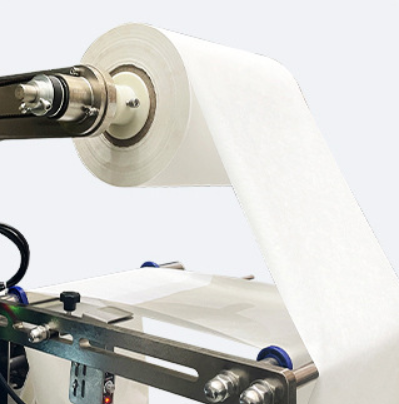

Stainless Steel Roll Film Holder
Heavy-duty stainless steel film roll shaft and tensioning system supporting film rolls up to 450mm outer diameter, ensuring smooth feed stability.

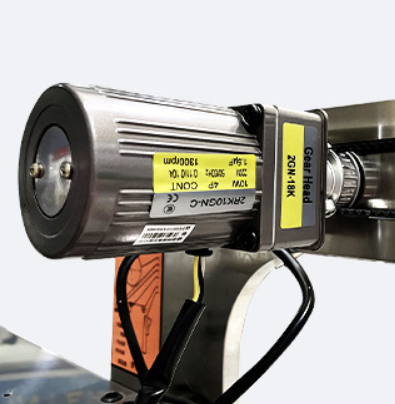

Film Delivery Motor
High-performance film transport motor system providing constant torque and precise speed control for steady packaging film pulling.

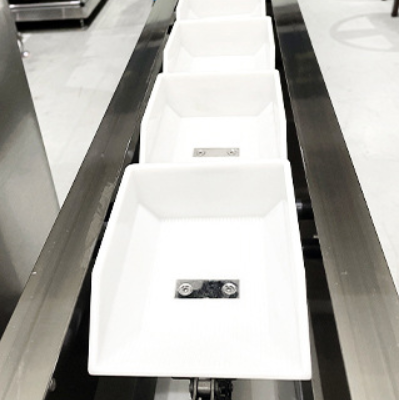

Bucket Conveyor System
Stainless steel chain link conveyor with high-density food-grade plastic buckets, designed for secure manual feeding of kits and fragile goods.

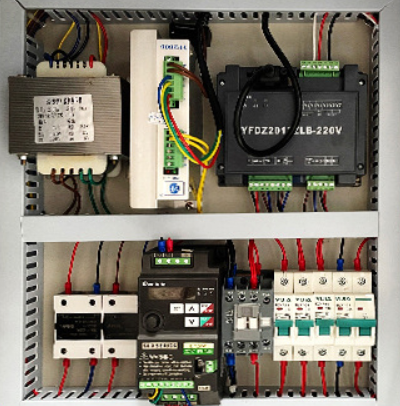

Electrical Control Cabinet
Clean, neatly organized electrical cabinet routing with premium circuit breakers and controller modules for long-term operational safety.

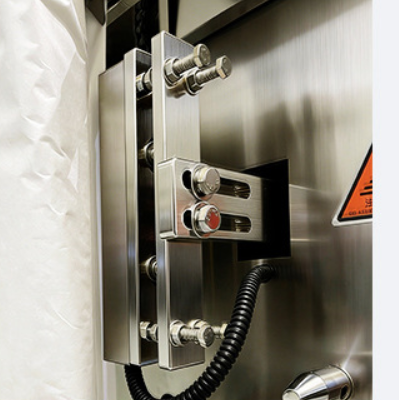

Vertical Sealing Assembly
Rapid heating vertical sealing block with uniform temperature distribution and high thermal conductivity, ensuring clean vertical seals without film damage.

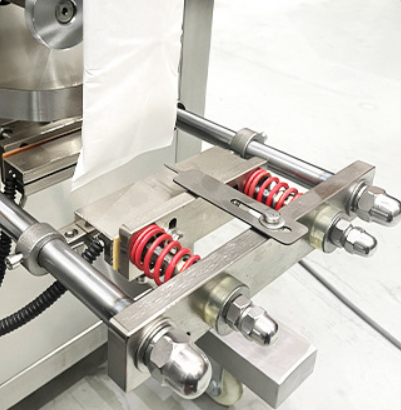

Horizontal Sealing Assembly
Rapid heating horizontal sealing jaws and cutter with precision spring dampers, ensuring clean pouch cutoffs and solid, leak-free cross seals.
Pre-Shipment Quality Testing
1. Customize
Adjusting the bag forming tube and chain sync speed to match your kit sizes.
2. 72H Test
Running the machine continuously for 3 days to verify conveyor timing and jaw stability.
3. Trial run
Using samples of your actual kitting items to test dropping accuracy and sealing strength.
4. HD Video
Sending you testing videos and parameter reports for approval before shipping.
