HYS VPM-200 Horizontal Vacuum Packaging Machine
The HYS VPM-200 is a horizontal push-type automatic vacuum chamber wrapping system. Featuring an integrated high-draw vacuum pump, double seal band closure, and pusher feed conveyor, it achieves final chamber vacuum pressures under 1 KPa. Perfect for raw foods preservation, rice bricks, dried tea packages, and chemicals requiring oxygen protection.
Live Video Demonstration
Watch the HYS horizontal vacuum push-type system in operation. This demonstration highlights the automatic material loading, precise sealing, and synchronized high-speed cutting.
HYS Horizontal Vacuum Push Packaging Machine Running Video
Video ID: mH4nnp1_Zqo | Click to play YouTube demonstration video
Product Structure Analysis
Clear & Bright Layout
Our push-type vacuum chamber machine features a heavy duty sanitary design. Key parts like the vacuum pump, lid seals, and pusher cylinder guide are structured for industrial durability and continuous operation.
1. Heavy-Duty Vacuum Pump
High-displacement rotary vane vacuum pump capable of reaching final pressures ≤1.0 KPa rapidly.
2. Airtight Chamber Lid
Insulated lid with high-density silicone gaskets to guarantee absolute seal vacuum tightness during draw cycles.
3. Double Active Sealing Jaws
Dual impulse heating elements that seal both sides of the pouch opening with flat, airtight weld lines.
4. Pneumatic Pusher Plate
High-torque cylinder-driven pusher plate that automatically positions bags inside the vacuum chamber.
5. Flat Infeed Conveyor
Chain conveyor system facilitating smooth, continuous feeding of pre-filled product packs to the pusher gate.
6. Digital Console Control
Operator screen managing chamber draw duration, sealing dwell time, cooling delay, and emergency stops.
7. Solid SUS304 Frame
Heavy steel chassis that prevents mechanical vibration and complies with food processing washdown guidelines.
8. Safety Release Valves
Dual mechanical pressure release valves that vent chamber atmosphere safely after sealing is finished.
Key Engineering Features
High Vacuum Chamber
Industrial rotary vacuum pump reaches deep vacuum thresholds down to 1 KPa, extending shelf life.
Pusher Feeding Conveyor
Automatic pneumatic loader conveyor feeds product bags into the vacuum slot, maximizing speed.
Impulse Dual Heating
Dual hot sealing bands apply even thermal pressure to guarantee airtight welds across thick composite bags.
SUS304 Sanitary Build
Corrosion-resistant chassis designed for easy sanitizing, perfect for food packaging environments.
Technical Specifications Matrix
| Specification Parameter | Standard Configuration (VPM-200) |
|---|---|
| Packing Speed | 30 - 45 bags/min (depends on vacuum duration setting) |
| Max Vacuum Seal Size | Width: 50 - 150 mm | Length: 50 - 300 mm |
| Final Chamber Pressure | ≤ 1.0 KPa standard vacuum |
| Voltage Rating | 3 Phase AC 380V, 50Hz/60Hz, 6.5 KW |
| Sealing Jaw Type | Flat dual seal band closure |
| Pusher Feed Drive | Pneumatic cylinder pusher plate conveyor |
| Total Dimensions | L: 2600 * W: 1300 * H: 1750 mm |
| Machine Weight | approx. 780 Kg |
| Vacuum Pump | Industrial heavy duty rotary-vane vacuum pump |
Material Suitability & Packaging Formats
Our vacuum sealers pack various food products, grains, hardware and chemicals into airtight bags.
Fresh Meat & Seafood
Steaks, fish fillets, frozen meat
Grains & Rice Bricks
Rice bricks, beans, millets
Dried Tea Bricks
Green/black tea brick packaging
Frozen block food
Prepared block meals, pre-packaged blocks
Hardware & Electronics
Anti-static, anti-oxidation packs
Chemical Materials
Powder block, oxygen protection bag
Medical Instruments
Sterile syringes, medical tools
Standard Flat Pouch
Gusset Brick Pouch
Stand Up Pouch
Nylon/PE Co-extruded
High-density co-extruded nylon bag film providing superior oxygen barriers.
PET/AL/PE Laminated
Heavy laminated aluminium structures preventing puncture and UV exposure.
Embossed Film
Textured vacuum film channels providing rapid air extraction rates.
Key Component Details

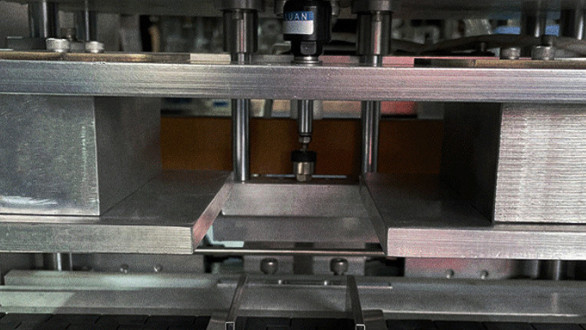

Bag Sealing & Air Exhausting Module
Coordinates dual pneumatic heat-sealing jaws and mechanical pressing guides to evacuate air efficiently from pouch openings before completing hermetic packaging.

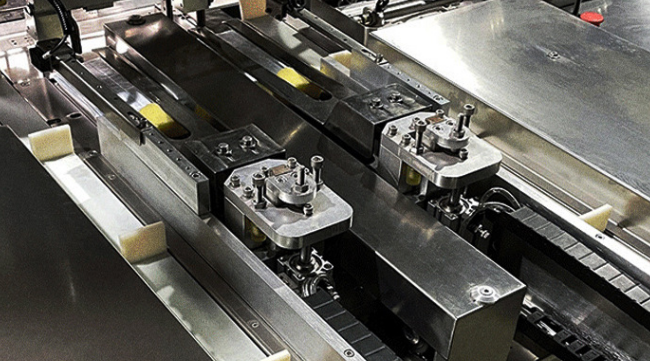

Material Pushing Conveyor Module
Features dual-axis guide tracks and robust pneumatic cylinders to push products smoothly and consistently into the vacuum chamber.

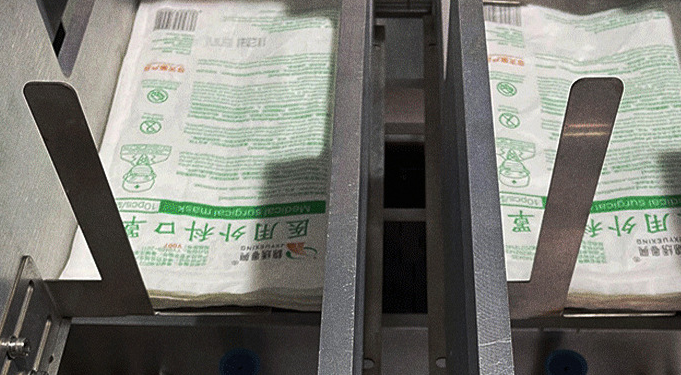

Bag Supply & Mask Feeding Unit
Utilizes dual vertical guide bays holding pre-formed pouches, feeding masks or other flat goods automatically with high alignment accuracy.

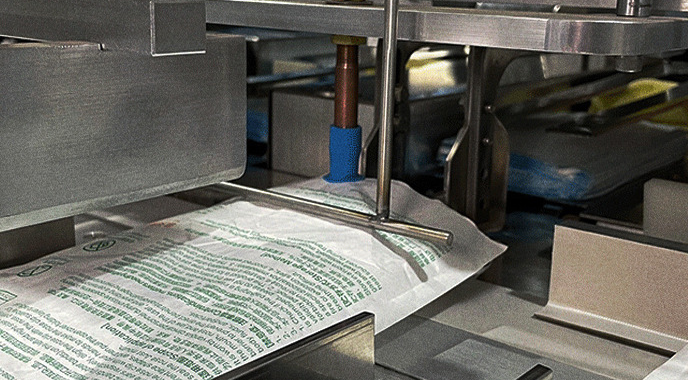

Automatic Bagging & Chamber Loading Module
Employs vacuum suction cups to open bags and pneumatic guides to load products directly into the chamber slots without manual intervention.
Pre-Shipment Quality Testing
1. Customize
Calibrating pusher height limits and sealing dwell timers to fit your vacuum bag parameters.
2. 72H Test
Running the vacuum chamber drawer cyclically for 3 days to test pneumatic cylinders and pump seals.
3. Trial run
Testing with samples of your actual meat blocks, grains or tea to verify leak-free chamber draw rates.
4. HD Video
Sending you testing videos and parameter reports for approval before shipping.
