HYS VFFS Multi-use Vertical Packaging Machine
Our flagship Vertical Form Fill Seal (VFFS) Bagger is an industrial packaging system designed for small-to-medium factories. It automatically handles bag forming, precise filling, air extraction, coding, and sealing in one continuous pipeline, replacing expensive manual labor with repeatable accuracy.
Live Video Demonstration
Watch the HYS VFFS vertical packaging system in operation. This demonstration highlights the automatic material loading, precise sealing, and synchronized high-speed cutting.
HYS VFFS-320 Vertical Packaging Machine Running Video
Click to play YouTube video demonstration

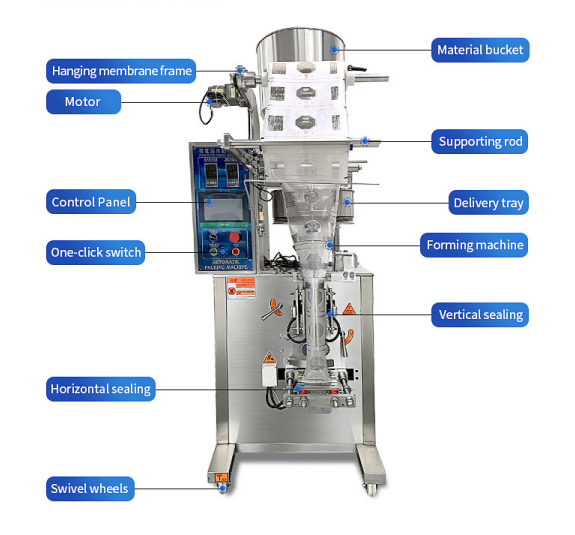

Product Structure Analysis
Clear & Bright Layout
The equipment is compact, low in energy consumption, easy to operate, and easy to clean. With its modular design, key parts like the material bucket, vertical sealer, horizontal sealer, and forming collar are laid out for swift maintenance access.
1. Feeding Hopper
Stainless steel hopper that holds granules or powders, feeding directly into the dosing mechanism.
2. Collar Bag Former
High-precision collar that folds flat film into a perfect cylindrical sleeve without folding friction.
3. Vertical Sealing Jaws
Heating element that seals the vertical overlap of the cylindrical film to form a solid back seam.
4. Film Pulling Belts
Vacuum or friction-driven pulling belts that smoothly transport the film sleeve downward at preset lengths.
5. Horizontal Sealing Jaws
Transverse sealing assembly that seals the top/bottom bag seams and cuts individual pouches.
6. PLC Smart Interface
Digital touchscreen panel to control pulling speed, sealing temperatures, and diagnostic alarms.
7. Film Roll Mounting Shaft
Heavy duty shaft that holds the packaging film roll and ensures consistent tension control.
8. Finished Pouch Exit
Discharges completed pouches smoothly to inline transport belts or collection turntables.
Key Engineering Features
PLC Intelligent Control
High-speed program execution stores parameters for up to 10 product styles, permitting quick product transitions.
Precision Pulling Belts
Friction-drive rubber pulling belts driven by a high-torque controller prevent film slippage and ensure precise bag length.
PID Thermal Sealing
Dual independent temperature controllers ensure clean, leak-free horizontal and vertical seals across laminated films.
Safety interlocks
Automatic warning alarms and safety shield sensors immediately halt machine operation during abnormal situations.
Technical Specifications Matrix
| Specification Parameter | 320 Model | 420 Model | 520 Model |
|---|---|---|---|
| Power Supply | 220V / 50-60Hz | 220V / 50-60Hz | 220V / 50-60Hz |
| Power Rating | 3.0 KW | 3.0 KW | 3.0 KW |
| Packaging Speed | ≤ 25 - 55 bags/min | ≤ 25 - 55 bags/min | ≤ 25 - 55 bags/min |
| Bag Size Limits | L: 20 - 150 mm W: 20 - 100 mm | L: 20 - 280 mm W: 20 - 200 mm | L: 20 - 320 mm W: 20 - 250 mm |
| Max Film Roll Outer Dia. | ≤ φ450 mm | ≤ φ450 mm | ≤ φ450 mm |
| Wire Rope Drum Dia. | ≤ φ200 mm | ≤ φ200 mm | ≤ φ200 mm |
| Label Roll Dia. | ≤ φ300 mm | ≤ φ300 mm | ≤ φ300 mm |
| Measurement Dose Range | 0.5 - 50 g | 0.5 - 50 g | 0.5 - 50 g |
| Shape Dimensions (L * W * H) | 110 * 81 * 177 cm | 110 * 75 * 168 cm | 110 * 76 * 170 cm |
| Machine Net Weight | 250 Kg | 350 Kg | 400 Kg |
Material Suitability & Packaging Formats
Our vertical form fill seal (VFFS) systems can be integrated with volumetric cup fillers, auger fillers, or piston pumps to pack diverse products into various bag formats.
Snacks & Granules
Chips, candies, nuts, beans
Agriculture & Grain
Coffee beans, rice, seeds
Hardware & Parts
Screws, clips, plastic parts
Medicinal Powders
Herbal extracts, powder dose
Chemical Powders
Detergents, fine powders
Food Powders
Coffee powder, milk powder
Pillow Bag (Back Seal)
3-Side Seal Pouch
4-Side Seal Pouch
Stick Pack (Sachet)
PET/AL/PE
High barrier aluminium foil composite films for coffee/powders.
PET/PE & OPP/PE
Standard clear/laminated films for general snacks and candies.
Nylon/PE & Paper/PE
Puncture-resistant vacuum bag films and eco-friendly paper packaging.
Key Component Details

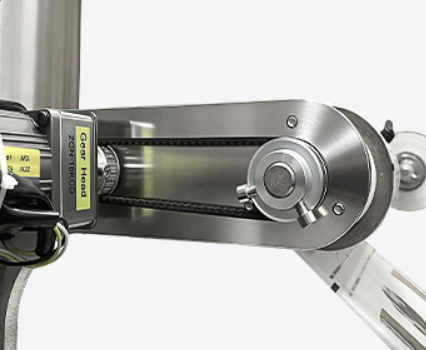

High-Quality Materials
Solid structural elements crafted from premium reinforced alloys to guarantee long-term mechanical reliability.

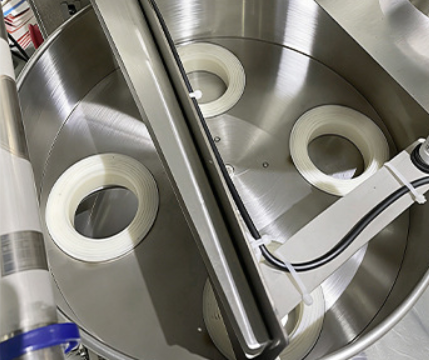

Volumetric Turntable
Turntable cup-dosing measurement with infrared sensor controls and adjustable cup volume to ensure stable product distribution.

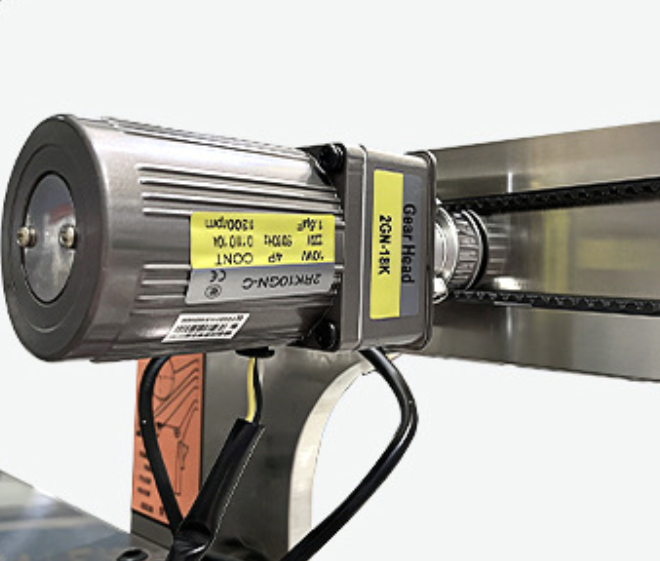

Film Feed Motor
High-performance film transport motor system delivering smooth, continuous feed speed and stable film tensioning.

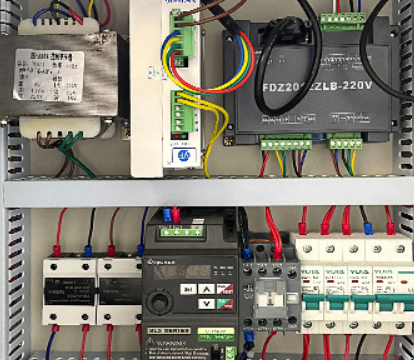

Electrical Cabinet
Neat, clean, and organized electrical system wiring without clutter, featuring premium-grade safety circuit breakers.

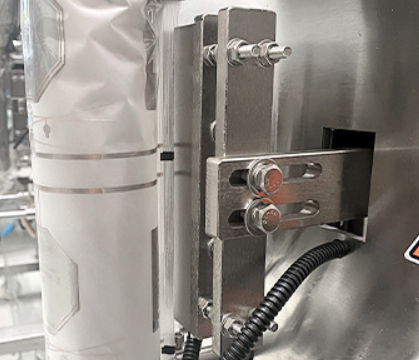

Vertical Sealing
Rapid heating speed and uniform temperature distribution with high thermal conductivity, preventing film deformation and overlapping.

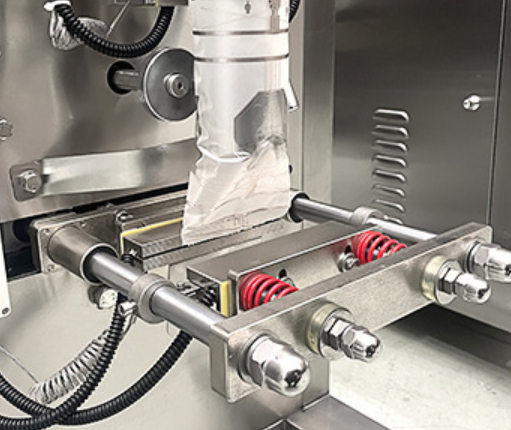

Horizontal Sealing
Rapid heating speed and uniform temperature distribution with high thermal conductivity, ensuring clean cutoffs without compressing pulling belts.
Pre-Shipment Quality Testing
1. Customize
Adjusting the bag forming collar and seals to match your bag sizes.
2. 72H Test
Running the bagger continuously for 3 days to verify heating and program stability.
3. Trial run
Using samples of your actual material to test sealing quality and filling speed.
4. HD Video
Sending you testing videos and parameter reports for approval before shipping.
