HYS HY-590 Fully Automatic Heat Shrink Packaging Machine
The HYS HY-590 is our premier fully automatic heat shrink packaging system, combining a precise intermittent sealer with a high-capacity recirculating contraction furnace. Perfect for wrapping boxed pharmaceuticals, software packs, group-cartoned foods, books, and cosmetic sets, it provides complete protective film coverage. The standard parameters can be fully customized by our engineering base to match your exact production speeds and item dimensions.
Live Video Demonstration
Watch the HYS L-Bar Sealer & heat shrink wrapping system in operation. This demonstration highlights the automatic material loading, precise sealing, and synchronized high-speed cutting.
HYS HY-590 Heat Shrink Packaging System Running Video
Video ID: [Pending Upload] | Click to play preview once YouTube link is configured
Product Structure Analysis
Clear & Bright Layout
The HY-590 automatic shrink wrapping line features an optimized modular design. The film unfolding triangle, L-bar sealing bar, and contraction furnace (shrink tunnel) are laid out for convenient operations, quick sizing adjustments, and easy maintenance.

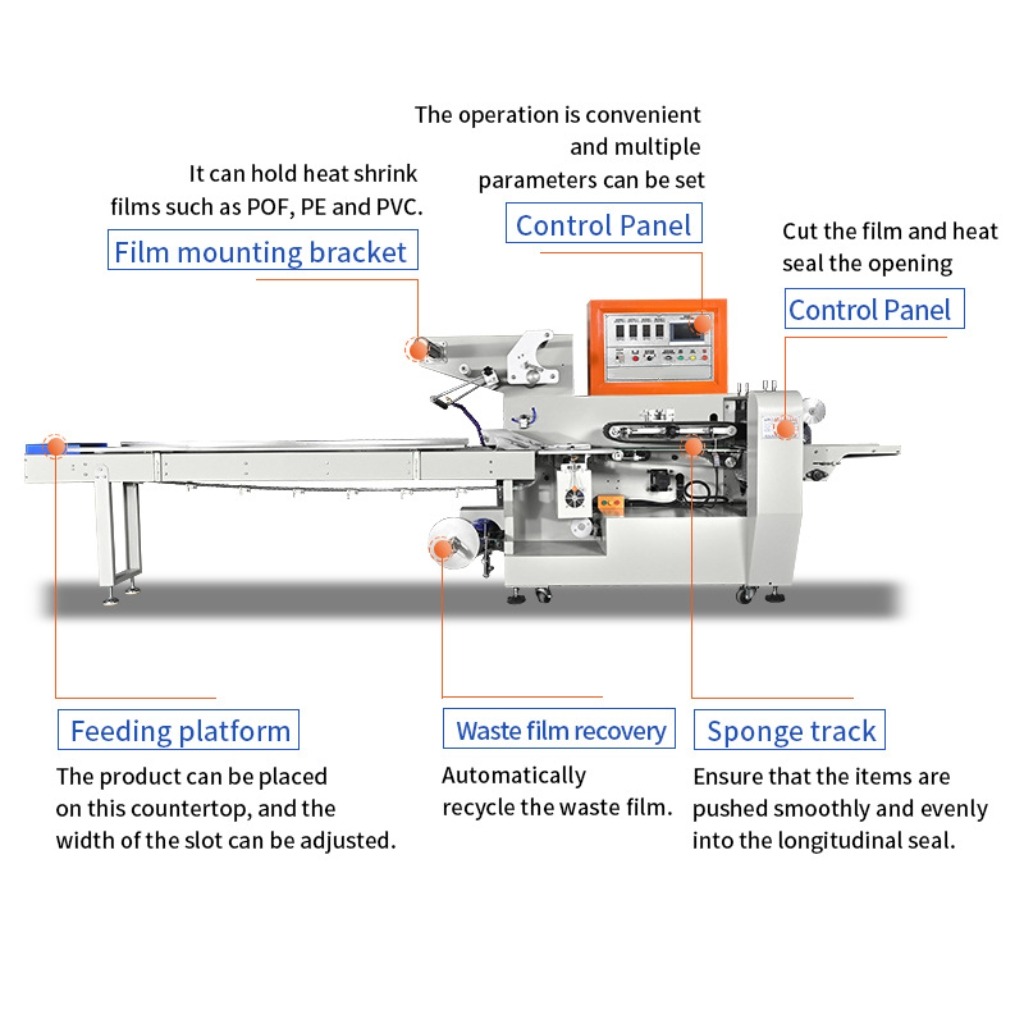

Main Sealing Unit
Feeding Platform
The product can be placed on this countertop, and the width of the slot can be adjusted to fit various product sizes.
Film Mounting Bracket
Designed to hold and supply rolls of heat shrink films such as POF, PE, and PVC.
Main Control Panel
Operation is highly convenient, allowing operators to set multiple operating parameters easily.
Sealing & Cutting Assembly
Cuts the shrink film sleeve and heat-seals the bag opening cleanly in a single movement.
Sponge Track
Ensures that the packaging items are pushed smoothly and evenly into the longitudinal seal.
Waste Film Recovery
Automatically and cleanly recycles the leftover trim of waste film during the sealing process.

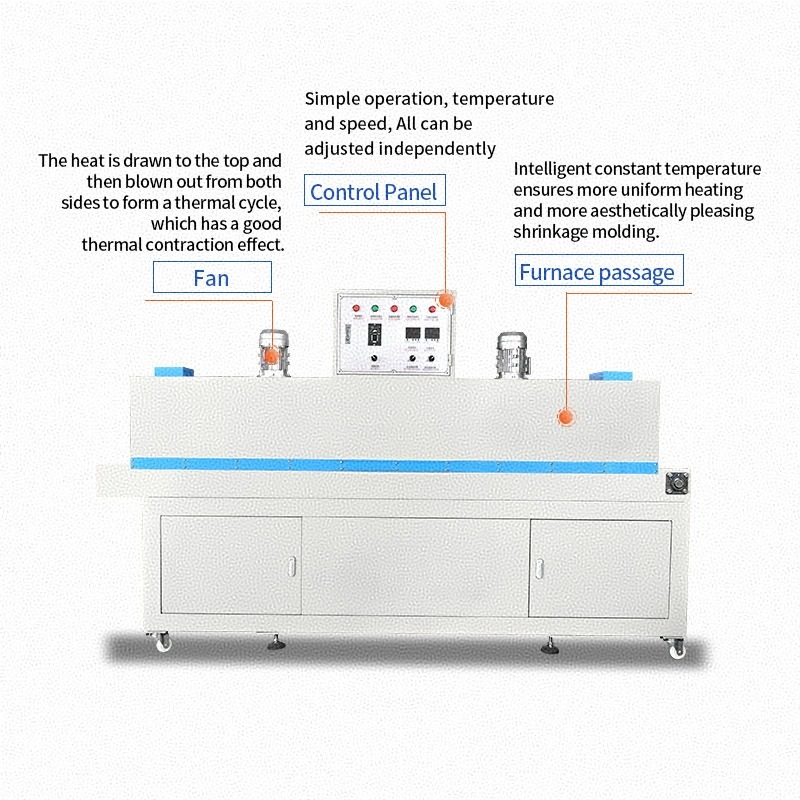

Contraction Furnace (Shrink Tunnel)
Thermal Circulation Fan
Draws heat to the top and blows it out from both sides to form a highly efficient thermal cycle for great shrinkage.
Furnace Passage
Equipped with intelligent constant temperature control to ensure uniform heating and aesthetically pleasing shrink molding.
Furnace Control Panel
Simple operation panel where heating temperature and conveyor speed can both be adjusted independently.
L-Bar Sealing vs. Continuous Side Sealing
Which shrink wrapping architecture fits your product sizing?
Shrink packaging lines employ two distinct sealing mechanisms. Choosing between intermittent L-bar sealing and continuous side sealing determines packaging speed and length constraints.
Intermittent L-Bar Sealing (HY-590 Standard)
Best for Standard Dimensions & Budget Lines
- Definition: Utilizes an L-shaped sealing frame that descends intermittently to seal the side and tail end at once.
- Size Limits: The product length and width are constrained by the physical size of the L-bar frame.
- Operational Mode: Intermittent flow. The infeed conveyor pauses during the knife sealing descend cycle.
- Speed Limit: Best suited for standard B2B output lines (30-150 packs/min).
- Ideal for: Books, small trays, cosmetic boxes, single grouped beverage cartons.
Continuous Side Sealing (HYS-CSS Series)
Best for Unlimited Lengths & High Speeds
- Definition: Separates side-sealing and cross-cutting. The side sealer seals continuously while products move.
- Size Limits: Unlimited product length. The side seam is continuous; only product width and height are limited.
- Operational Mode: Continuous flow. Products pass through without pausing, resulting in smooth transfer.
- Speed Limit: Engineered for high-speed automated packaging lines (40-80 packs/min).
- Ideal for: Long wooden panels, rolling wallpapers, multi-pack canned drinks, large pizza boxes.
Key Engineering Features
Constant Hot Alloy Blade
Specially alloyed constant-temperature L-bar heating knife with Teflon coating. Prevents smoke, film burning, or sticking to ensure clean, smoke-free sealing borders.
Safety Jaws & Anti-Clamp
Active photoelectric safety eye sensors automatically reverse the sealing frame cylinders if any hands or incorrect items are detected under the knife.
Convective Thermal Recirculation
Dual high-velocity circulation blowers distribute uniform hot air inside the insulated tunnel, preventing bag ballooning and delivering tight 360° wraps.
Motorized Waste Take-up
Driven by an independent induction tension motor to ensure the scrap film margin wraps smoothly without tears, keeping the packing area neat.
Technical Specifications Matrix
| Specification Parameter | HY-590 Standard Configuration | Customization Status |
|---|---|---|
| Product Model | HY-590 fully automatic heat shrink packaging machine | Standard Base Model |
| Bag Length Range | 100 - 450 mm | Customizable (up to 1000 mm) |
| Bag Width Range | 60 - 220 mm | Customizable (up to 220 mm) |
| Finished Bag Size Limit | 150 * 1000 mm max | Customizable |
| Width of Packaging Film | ≥ 590 mm | Customizable |
| Packaging Speed | 30 - 150 packs/min | Customizable |
| Material of Packaging Film | POF monolayer film | Customizable |
| Total Power (Main Unit) | 4.5 KW | Standard configuration |
| Total Power (Contraction Furnace) | 15.5 KW | Customizable |
| Product Weight (Main Unit) | 1000 Kg | Standard configuration |
| Product Weight (Contraction Furnace) | 600 Kg | Standard configuration |
| Product Size (Main Unit) | 5000 * 1170 * 1500 mm | Customizable |
| Product Size (Contraction Furnace) | 2600 * 600 * 1700 mm | Customizable |
Material Suitability & Packaging Formats
Our HY-590 automatic L-bar sealer and thermal contraction furnace are configured to wrap boxed cartons, group-assembled utilities, and various flexible polymer shrink materials.
Boxed Goods & Media
Books, software boxes, puzzles
Cosmetic Sets
Shampoo bottles, spray jars, cosmetics
Food & Beverage
Cup noodle groups, biscuit trays
Household Items
Stationery boxes, cutlery groupings
Fully Enclosed (6-Sides)
Complete environmental dust protection
Open Sleeve (4-Sides)
Open ends for cans and beverage trays
Multipack Bundling
Secures bottles/cups for retail salePOF Monolayer Film
Standard POF single-layer centerfold film. Odorless, non-toxic, standard configuration for retail goods.PE (Polyethylene)
Thicker film. Best for heavy group bundles & industrial transit. Customization supported.PVC Shrink Films
High shrinkage at low temperatures. Ideal for neck sleeves and custom tamper evident seals.Key Component Details

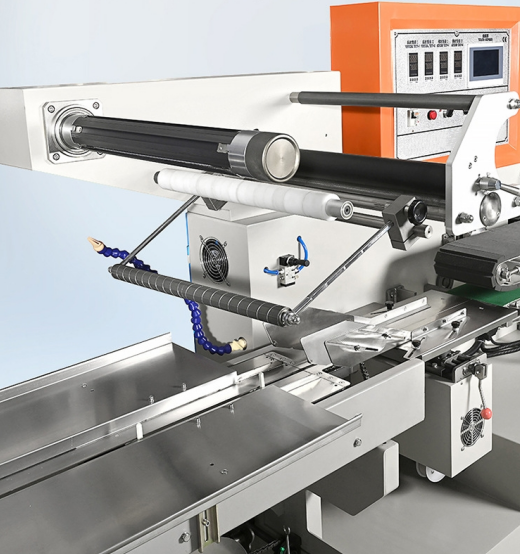

Film-pulling Device
Multiple interlocking film rotation shafts coordinate the film pulling, which can effectively prevent the film from wrinkling, stretching deformation, etc. It is suitable for POF heat shrink film rolling material, with smooth film rolling and simple film changing.

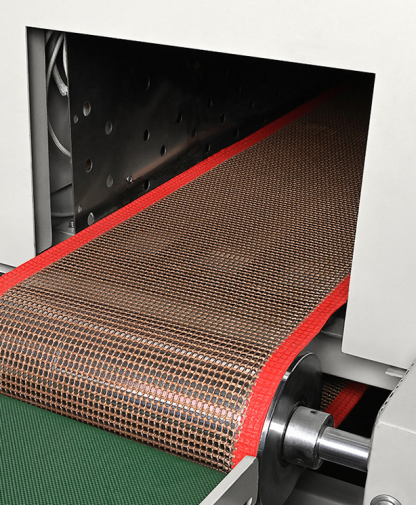

Teflon Mesh Conveyor Belt
The open mesh structure ensures that hot air penetrates the product evenly, avoiding uneven local shrinkage, bubbles or deformation.
Pre-Shipment Quality Testing
1. Customize
Adjusting the film folder height and L-sealer cylinder limits to match your product sizes.
2. 72H Test
Running the sealer and contraction furnace heaters continuously for 3 days to verify thermal relay stability.
3. Trial run
Using samples of your actual boxes/cartons to verify shrink tension and seam strength.
4. HD Video
Sending you testing videos and parameter reports for approval before shipping.
